Deliver catalog with GitOps

The catalog service is currently running as part of the base application, applied directly with kubectl. We'll now hand ownership of it to Argo CD so it's delivered from Git instead. Two declarative steps make that happen: register a deployment target, then create an Application.

Register the cluster as a deployment target

The managed Argo CD capability doesn't deploy to the local cluster automatically — you register it explicitly, and it's identified by its EKS cluster ARN rather than the usual in-cluster API URL. We register it under the conventional name in-cluster.

The capability auto-created an EKS access entry for its IAM Capability Role during prepare-environment, and the role is associated with the cluster-admin access policy, so Argo CD already has the Kubernetes permissions it needs to sync.

# manifests/modules/fastpaths/eks-capabilities/argocd/cluster.yaml
apiVersion: v1
kind: Secret
metadata:
  name: in-cluster
  namespace: argocd
  labels:
    argocd.argoproj.io/secret-type: cluster
stringData:
  name: in-cluster
  server: $EKS_CLUSTER_AUTO_ARN
  project: default

1. The argocd.argoproj.io/secret-type: cluster label tells Argo CD this Secret describes a deployment target.
2. The target is identified by the cluster ARN ($EKS_CLUSTER_AUTO_ARN), not https://kubernetes.default.svc.

Apply it, resolving the cluster ARN with envsubst:

~$cat ~/environment/eks-workshop/modules/fastpaths/eks-capabilities/argocd/cluster.yaml \

| envsubst | kubectl apply -f -

secret/in-cluster created

Create the catalog Application

Now define an Argo CD Application that points at the seeded CodeCommit repository. Because the IAM Capability Role grants codecommit:GitPull, Argo CD reads the repository directly by its HTTPS URL — there's no repository Secret, no SSH key, and no Git credential helper to configure.

# manifests/modules/fastpaths/eks-capabilities/argocd/application.yaml
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: catalog
  namespace: argocd
spec:
  project: default
  source:
    repoURL: $EKS_CAP_CODECOMMIT_URL
    targetRevision: main
    path: catalog
  destination:
    name: in-cluster
    namespace: catalog
  syncPolicy:
    automated:
      prune: true
      selfHeal: true
    syncOptions:
      - CreateNamespace=true

1. repoURL is the CodeCommit HTTPS endpoint ($EKS_CAP_CODECOMMIT_URL); path: catalog selects the manifests directory in the repo.
2. destination.name: in-cluster matches the deployment target we just registered.
3. syncPolicy.automated with prune and selfHeal makes Argo CD continuously reconcile the cluster to match Git.

Before Argo CD adopts catalog, remove the copy the base application applied with kubectl so there's a single owner of the namespace:

~$kubectl delete namespace catalog --ignore-not-found

namespace "catalog" deleted

Apply the Application, resolving the repository URL with envsubst:

~$kubectl delete application catalog -n argocd --ignore-not-found

~$cat ~/environment/eks-workshop/modules/fastpaths/eks-capabilities/argocd/application.yaml \

| envsubst | kubectl apply -f -

application.argoproj.io/catalog created

Argo CD picks up the new Application, pulls the manifests from CodeCommit, creates the catalog namespace, and deploys the workloads. Trigger an immediate refresh so we don't wait on the default ~3-minute poll, then wait for it to report both Synced and Healthy:

~$kubectl annotate application catalog -n argocd \

argocd.argoproj.io/refresh=hard --overwrite

application.argoproj.io/catalog annotated

~$kubectl wait --for=jsonpath='{.status.sync.status}'=Synced \

application/catalog -n argocd --timeout=300s

application.argoproj.io/catalog condition met

~$kubectl wait --for=jsonpath='{.status.health.status}'=Healthy \

application/catalog -n argocd --timeout=300s

application.argoproj.io/catalog condition met

Inspect the Application's status:

~$kubectl get application catalog -n argocd \

-o jsonpath='{.status.sync.status}{"/"}{.status.health.status}{"\n"}'

Synced/Healthy

Confirm the workloads Argo CD deployed are running:

~$kubectl rollout status -n catalog deployment/catalog --timeout=240s

deployment "catalog" successfully rolled out

~$kubectl get pods -n catalog

NAME                       READY   STATUS    RESTARTS   AGE

catalog-7d9f4c5b8d-abcde   1/1     Running   0          90s

catalog-mysql-0            1/1     Running   0          90s

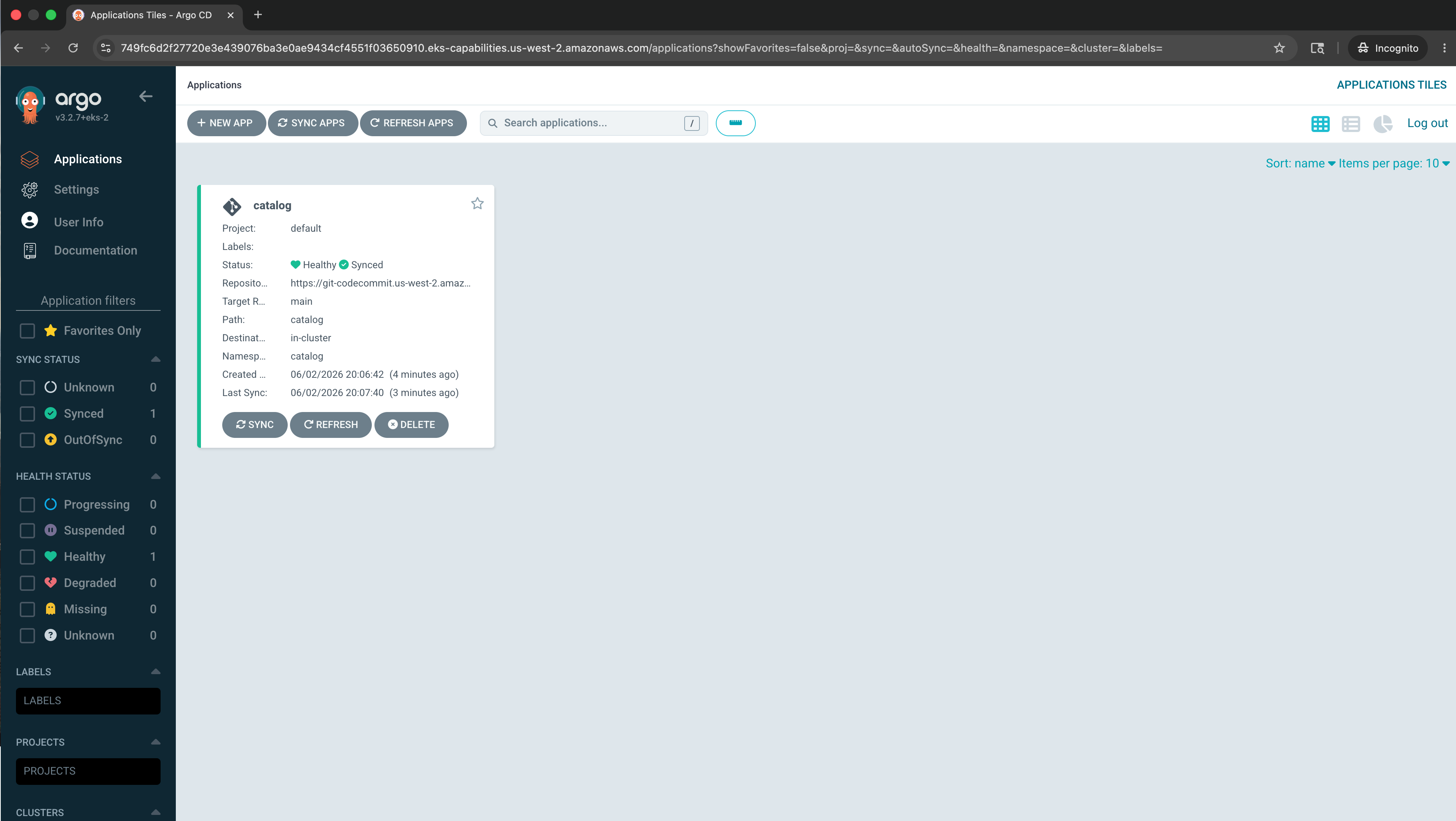

You can also see it on Argo CD UI

The catalog service is now delivered by GitOps. Any change pushed to the CodeCommit repository will be reconciled to the cluster automatically — which we'll see next.
