Trigger a GitOps update

With automated sync enabled, the Git repository is now the source of truth for catalog. To roll out a change we don't touch the cluster at all — we change the manifests in CodeCommit and let Argo CD reconcile. Let's bump the catalog container image from 1.2.1 to 1.2.2 and watch it deploy.

First, clone the CodeCommit repository into the IDE. git-remote-codecommit lets git authenticate to CodeCommit using your ambient AWS credentials through the codecommit:: remote helper — no SSH keys, no Git credentials:

~$rm -rf ~/environment/catalog-gitops

~$git clone codecommit::${AWS_REGION}://${EKS_CAP_CODECOMMIT_REPO} ~/environment/catalog-gitops

note

The rm -rf makes the step idempotent: if you ran the clone earlier or re-entered the lab via prepare-environment, any previous working copy is removed before cloning a fresh one. The cleanup hook between fastpath modules also removes this directory, so it may not be present from a previous session.

Confirm the current image tag in the repository:

~$grep 'image:' ~/environment/catalog-gitops/catalog/deployment.yaml

          image: "public.ecr.aws/aws-containers/retail-store-sample-catalog:1.2.1"

Update the image tag from 1.2.1 to 1.2.2:

~$sed -i 's|retail-store-sample-catalog:1.2.1|retail-store-sample-catalog:1.2.2|' \

~/environment/catalog-gitops/catalog/deployment.yaml

~$grep 'image:' ~/environment/catalog-gitops/catalog/deployment.yaml

          image: "public.ecr.aws/aws-containers/retail-store-sample-catalog:1.2.2"

Commit and push the change. Run the whole block as one chained command — Git needs user.email and user.name set in this repository before the commit, and the chain (&&) guarantees the identity is in place before git commit runs:

~$cd ~/environment/catalog-gitops && \

git config user.email "you@eksworkshop.com" && \

git config user.name "EKS Workshop" && \

git add catalog/deployment.yaml && \

(git diff --cached --quiet \

|| git commit -m "Bump catalog image to 1.2.2") && \

git push origin main

note

If you split the block and run git commit standalone, you may see fatal: unable to auto-detect email address — that means the git config lines didn't run yet in the same shell. Just re-run the chained block above.

That's the entire change — a single commit to Git. Argo CD polls the repository on its own schedule and reconciles when it detects the new revision. To avoid waiting up to ~3 minutes for the next poll, ask Argo CD to refresh the Application now:

~$kubectl annotate application catalog -n argocd \

argocd.argoproj.io/refresh=hard --overwrite

application.argoproj.io/catalog annotated

Wait for the rollout to complete with the new image:

~$kubectl rollout status -n catalog deployment/catalog --timeout=180s

deployment "catalog" successfully rolled out

Confirm the running Deployment is now on the new tag:

~$kubectl get deployment catalog -n catalog \

-o jsonpath='{.spec.template.spec.containers[0].image}{"\n"}'

public.ecr.aws/aws-containers/retail-store-sample-catalog:1.2.2

You can also confirm Argo CD reconciled to the new revision and reports healthy:

~$kubectl get application catalog -n argocd \

-o jsonpath='{.status.sync.status}{"/"}{.status.health.status}{"\n"}'

Synced/Healthy

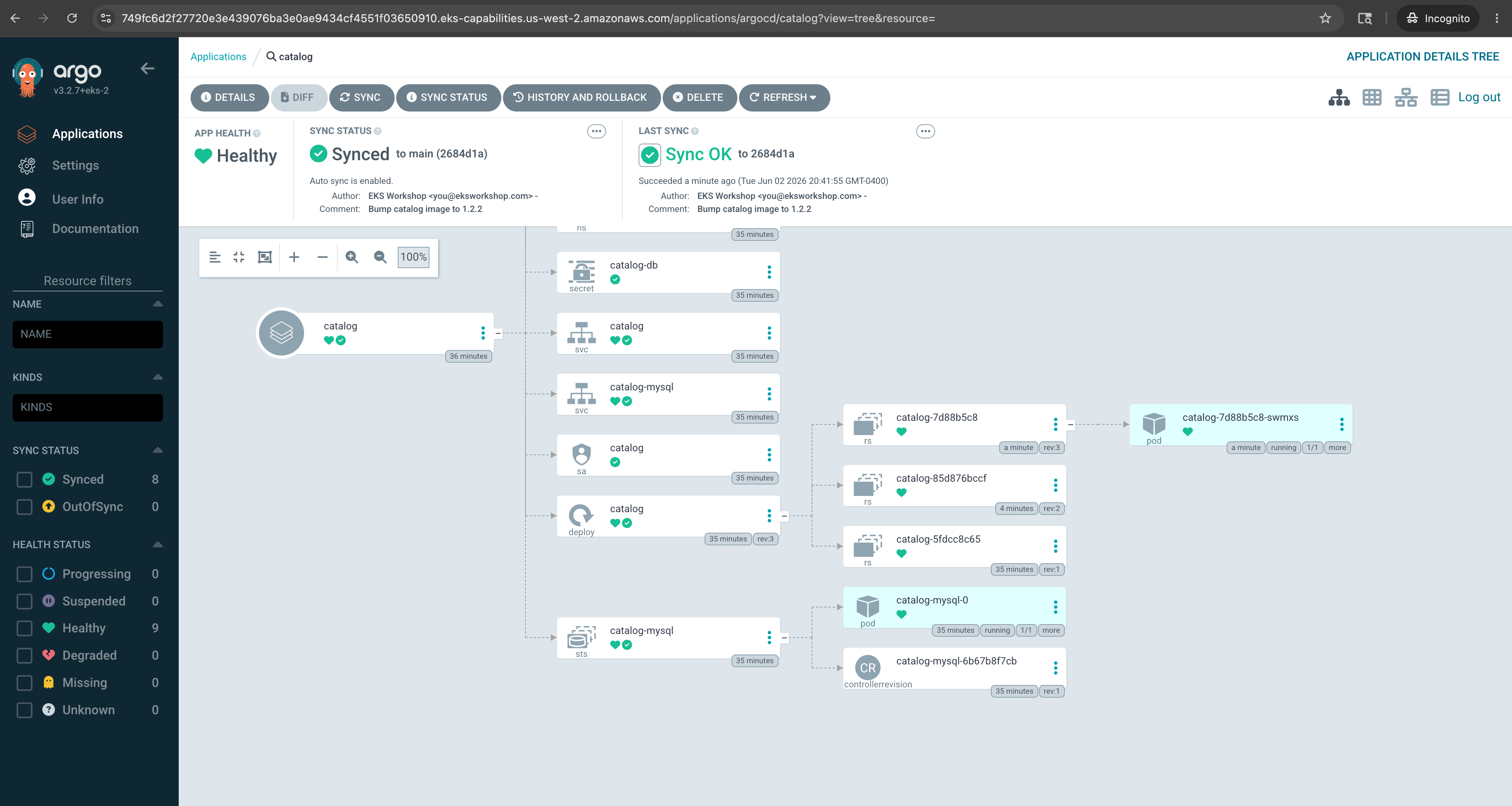

You can also see the rolled-out version on the Argo CD UI:

tip

Because selfHeal is enabled, try editing the Deployment directly — for example kubectl scale -n catalog deployment/catalog --replicas=3. Argo CD detects the drift from Git and reverts it, because Git, not the cluster, is the source of truth.

That's Lab 2 done. You delivered the catalog service through a fully managed GitOps pipeline: a push to CodeCommit became a reconciled rollout on the cluster, with no kubectl apply and no self-managed Argo CD to operate.

Next, we'll use the kro capability to declare the complete carts stack as a single resource graph.
